Ultra-Low Resistance MOSFETs for Advanced Power Systems
2025-04-24
In the dynamic field of power electronics, Goford Semiconductor continues to set benchmarks with its advanced N-Channel MOSFET solutions. Designed for high efficiency and reliability, the latest Series leverages cutting-edge trench technology to deliver ultra-low on-resistance, rapid switching, and robust performance across industrial and automotive applications.
Product Highlights:
Ultra-Low Loss Design: Industry-leading 0.73mΩ Rdson(GT013N04D5C) minimizes energy loss in motor drives & DC/DC converters.
Rapid Switching for High-Frequency Applications: Optimized gate charge (Qg=88nC GT013N04D5C) and 13ns switching enable high-frequency performance in server power supplies & EV chargers.
Enhanced Thermal Performance: 0.416°C/W thermal resistance ensures stable performance in compact renewable energy inverters & LED drivers.
Versatile Packaging and Scalability: Available in compact DFN and TOLL packages, the series supports space-constrained layouts while ensuring high current density.
Product Parametrics:
| Part Number | Package | ESD | Vds(V) | Id(A) | Rds(on)mΩ(typ) @Vgs=10V | Rds(on)mΩ(max) @Vgs=10V | Qg(nC) | Ciss(pF) |
| GT011N08TL | TOLL-8L | NO | 80 | 350 | 0.85 | 163 | 13300 | |
| GT011N08TLA | TOLL-8L | NO | 80 | 383 | 0.85 | 163 | 13300 | |
| GT015N06TL | TOLL-8L | NO | 60 | 350 | 0.77 | 1.04 | 152 | 10694 |
| GT015N06TLA | TOLL-8L | NO | 60 | 350 | 0.77 | 1.04 | 152 | 10694 |
| GT013N04D5CH | DFN5*6-8L | NO | 40 | 270 | 0.82 | 84 | 5300 | |
| GT013N04D5C | DFN5*6-8L | NO | 40 | 270 | 0.73 | 1 | 88 | 6100 |
| GT014N04TL | TOLL-8L | NO | 40 | 275 | 0.98 | 1.35 | 94 | 6100 |
| GT009N04D5 | DFN5*6-8L | NO | 40 | 280 | 0.75 | 120 | 7318 | |
| GT009N04TL | TOLL-8L | NO | 40 | 340 | 0.81 | 120 | 7318 | |
| GT009N04TLA | TOLL-8L | NO | 40 | 340 | 0.81 | 120 | 7318 | |
| GT007N04D5 | DFN5*6-8L | NO | 40 | 350 | 0.72 | 1.4 | 125 | 7500 |

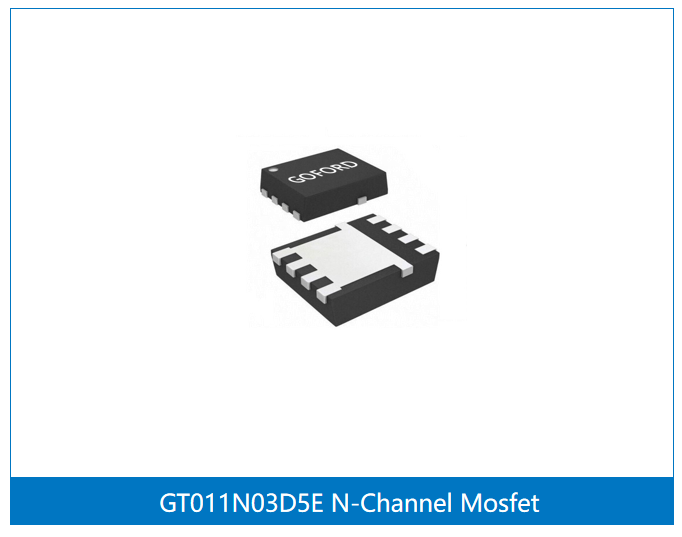

| GT011N03D5E | DFN5*6-8L | YES | 30 | 209 | 0.86 | 1.43 | 98 | 5950 |
| GT011N03TLE | TOLL-8L | YES | 30 | 250 | 1 | 1.47 | 98 | 6278 |
Applications:

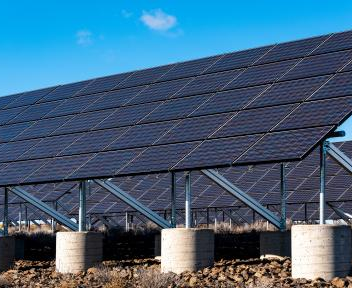

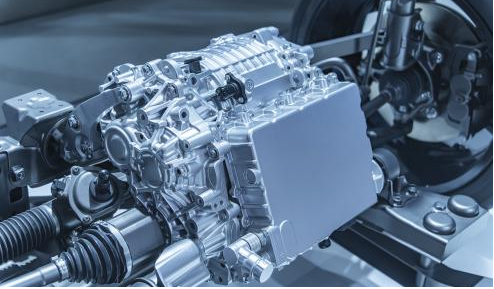

Industrial Automation Electric Vehicles (EVs) Renewable Energy
